How do I modify PDF-XChange application settings using an Active Directory Group Policy and an ADMX file?

Using ADMX and ADML Files with Group Policies

Tracker Software Products has created Active Directory Administrative Templates for PDF-XChange Editor, PDF-Tools and the Tracker Updater (which is used to auto-update all of our products). These templates were created in order to assist system administrators in deploying the software, and also to improve the user experience. The ADMX files that we provide are language-neutral and can be used to determine registry-based policy settings of specific features of our software. Additionally, we have also made the ADML files for language-specific settings available. Links to our ADMX and ADML files are provided below.

Further information on the management of Group Policy ADMX files is available here.

ADMX/AMDL Files

Click the links below to download the ADMX/ADML files for our products. Note that these files can be used to manage either local Group Policies or doman-based Group Policies:

PDF-XChange Editor

PDFXEditor.admx
PDFXEditor.adml

The predefined Administrative Template Reference Sheet for PDF-XChange Editor is available here.

PDF-Tools

PDFXTools.admx
PDFXTools.adml

Tracker Updater

TrackerUpdater.admx
TrackerUpdater.adml

The remainder of this article will detail the use of an ADMX file to determine a domain-based Group Policy. Please note:

  • A Windows Server 2016 Active Directory Domain Controller and a Central Store for Domain-Based GPOs is used in the examples detailed below, but the methodology is valid for all versions from Windows Server 2003.
  • If you choose not to create an ADMX 'Central Store', then the editing of GPOs will operate in the same manner as the editing of a local GPO with an ADMX file, as detailed here.
  • Further information on the editing of domain-based GPOs with ADMX files is available here.

Minimum Requirements

The following prerequisites are the minimum required in order to administer domain-based GPOs with Tracker Software's administrative template:

  • A Windows domain controller running Server 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2, 2003 or 2000.
  • A Windows Vista (or later) operating system for the administrative workstation.
  • A valid Central Store for ADMX files on your domain controller.

Using an ADMX File to Determine a Domain-Based Group Policy

This operation is a three-step process:

1. Populate the Central Store with the ADMX Files.
2. Use the Administrative Templates in a Policy.
3. Manage Group Policy Settings for PDF-XChange Editor and Enable/Disable the Policy.

Populate the Central Store with the ADMX Files

The first step is to make the ADMX/ADML files available for use. Copy them to the following locations of the domain controller:

PDFXEditor.admx must be copied to the Central Store on the domain controller. The default location is:

C:\Windows\SYSVOL\domain\Policies\PolicyDefinitions (as detailed below).

PDFXEditor.adml must be copied to the Central Store. The default location is:

C:\Windows\SYSVOL\domain\Policies\PolicyDefinitions\[MUIculture]

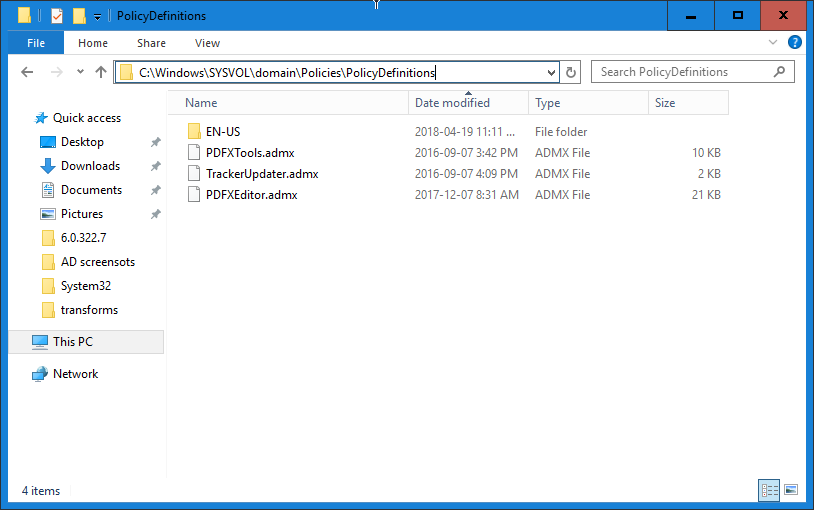

SYSVOL Policy Definitions default location

Note that the subfolder “EN-US” has been created in order to store the US English-specific language files. The templates can now be used to create/modify Group Policy objects, as they are located in the Central Store. The process of creating a new policy is detailed below.

Use the Administrative Templates in a Policy

The next step is to create a new policy that will manage the settings for PDF-XChange Editor:

1. Open the Group Policy management console on the associated Domain Controller. This can be done on either the Domain Controller itself or a management machine.

2. Create a new PDF-XChange Editor GPO for editing purposes. Right-click the Group Policy Objects node and select New. The New GPO dialog box will open. Type a name for the GPO:

3. Click OK.

4. Expand the Group Policy Objects node, then right-click the new GPO and click Edit:


Edit the new GPO


5. The Group Policy Management Editor dialog box will open and read all the ADMX files located in the Central Store. (Note that any ADMX files stored locally on an administrative machine will be ignored. This is because Group Policy tools will use only the ADMX files from the Central Store once a Central Store has been created). These policies are stored in the following location:

Computer Configuration -> Policies -> Administrative Templates: Policy Definitions (ADMX files) retrieved from the central store:

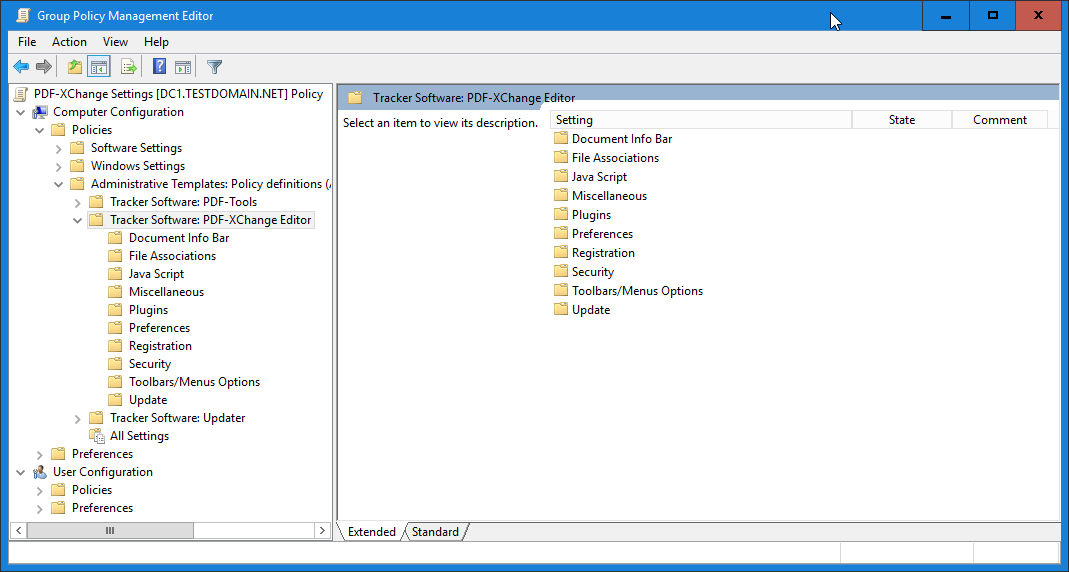

Tracker Administrative Templates in the Group Policy Management Editor


Available policies are grouped in categories for each application template. Note that this template is for Computer Configuration by design - we do not offer a User Configuration ADMX file. A PDF containing further information on the policies available within each category is available here.

Manage Group Policy Settings for PDF-XChange Editor

When new policies have been created, management is simply a matter of enabling or disabling them as desired. These processes are detailed below. Note that some policies contain additional settings, such as white lists and other optional parameters.

Enable or Disable the Policy

This example policy will modify whether or not PDF-XChange Editor checks that it is the default application for PDF files on the target computer.

Policy Title: Check if PDF-XChange Editor is default app.

Please note:

  • Policies are "not configured" by default, and must be enabled in order for their settings to be applied.
  • Read the policy name carefully.  Some policies disallow a function or feature so you must enable that policy to disable the feature.

Follow the steps below to enable or disable a policy:

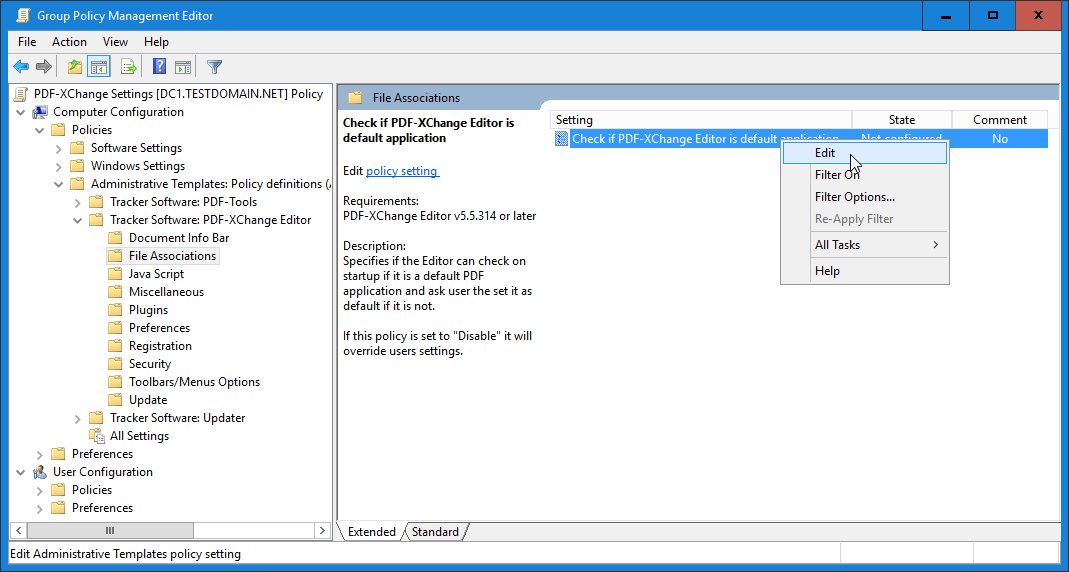

1. Select the category and setting to be modified:

File Associations -> Check if PDF-XChange Editor is default application (for example)

2. Right click the setting and then click Edit:





3. The Check if PDF-XChange Editor is default app dialog box will open:





4. Select Enabled or Disabled as desired and then click Apply.
